Wholesale Furnace Heating Element Silicon Carbide Rod,

Product Description

Description

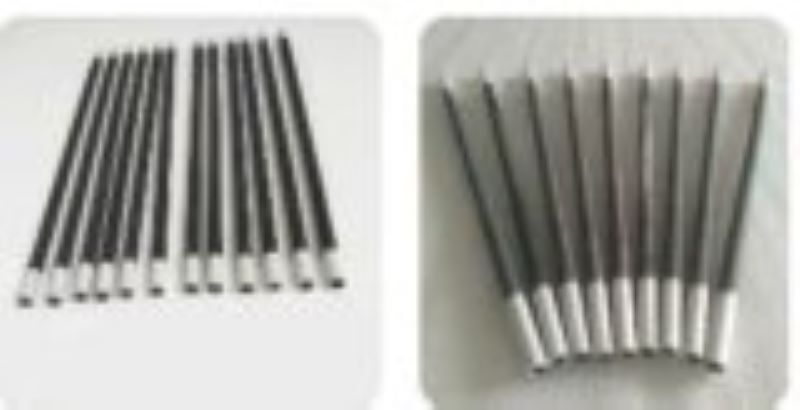

The silicon carbide heating element is a kind of non-metal high temperature electric heating element.It is made of selected super quality green silicon carbide as main material, which is made into blank, silided under high temperature and re-crystallized.

silicon carbide rodis a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400C. It can usually make use for furnance which temperature from 600C-1600C. It is widely used in various electric heating element of glass,chemical, electronic material and so on.

Application

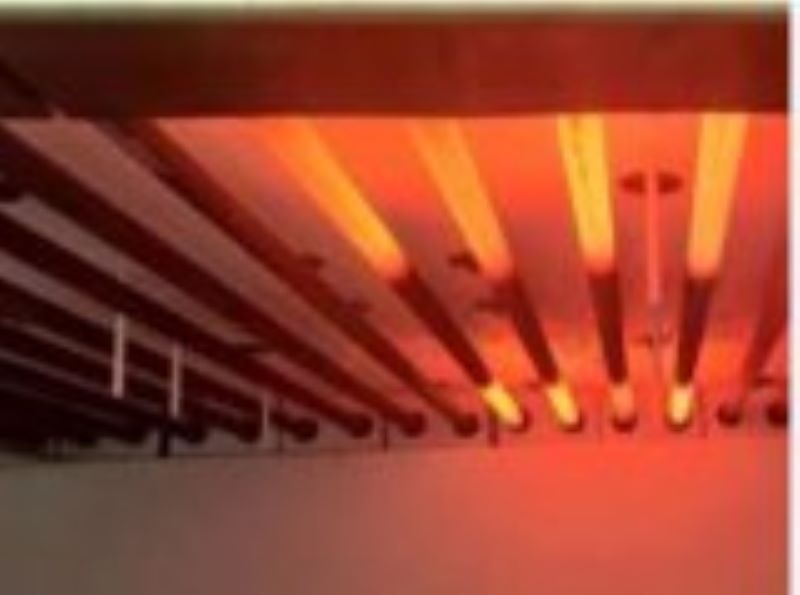

It is widely used in various high temperature electric furnacesand other electric heating devices, such as in the industries of magnet, ceramics, powder metallurgy, glass, metallurgy and machinery, etc.

ïAluminum die casting

ïLaboratory furnace
ïAluminum melting and holding furnace

ïRotary hearth furnace
ïContinuous furnace
ïCrucible furnace for non

ïGlass Feeder ferrous metals

Our Feature

We adopt new production process of cold ends, so our SIC heating elements have excellent specific rate of heat zone resistance and cold end resistance, saving energy, long life, avoiding over-temperature of cold ends to damage the furnace body.

1 withstands as high as 1600C
2 high strength and excellent shock resistance
3 heat source is free of noise and air pollution
4 anti-oxidization, anti- corrosion
5 easy to installation and maintenance

Detailed Features of SIC heater:
1. U Type SIC heater
SIC heatersare constructed to from a U-shape. Consequently Type U have the terminals at one end for a single-phase power source. This reduces the number terminations and cold ends thus enabling energy savings.
2.W Type SIC heater
SIC heater with the terminals at one end, is designed for three-phase power source applications, such as the float glass process.
3.Spiral Type SIC heater
SIC heater with a spiral-grooved heating section, are more resistant to heat and corrosion than conventional products and are able to withstand operation in rigorous conditions. Single spiral elements are provided with energy-saving, low-resistance, cold-end terminals.
4.Double Spiral Type SIC heater
SIC heater with a spiral-grooved heating section, are more resistant to heat andcorrosion than conventional products and are able to withstand operation in rigorous conditions. Double spiral elements are provided with energy-saving, low-resistance, cold-end terminals.

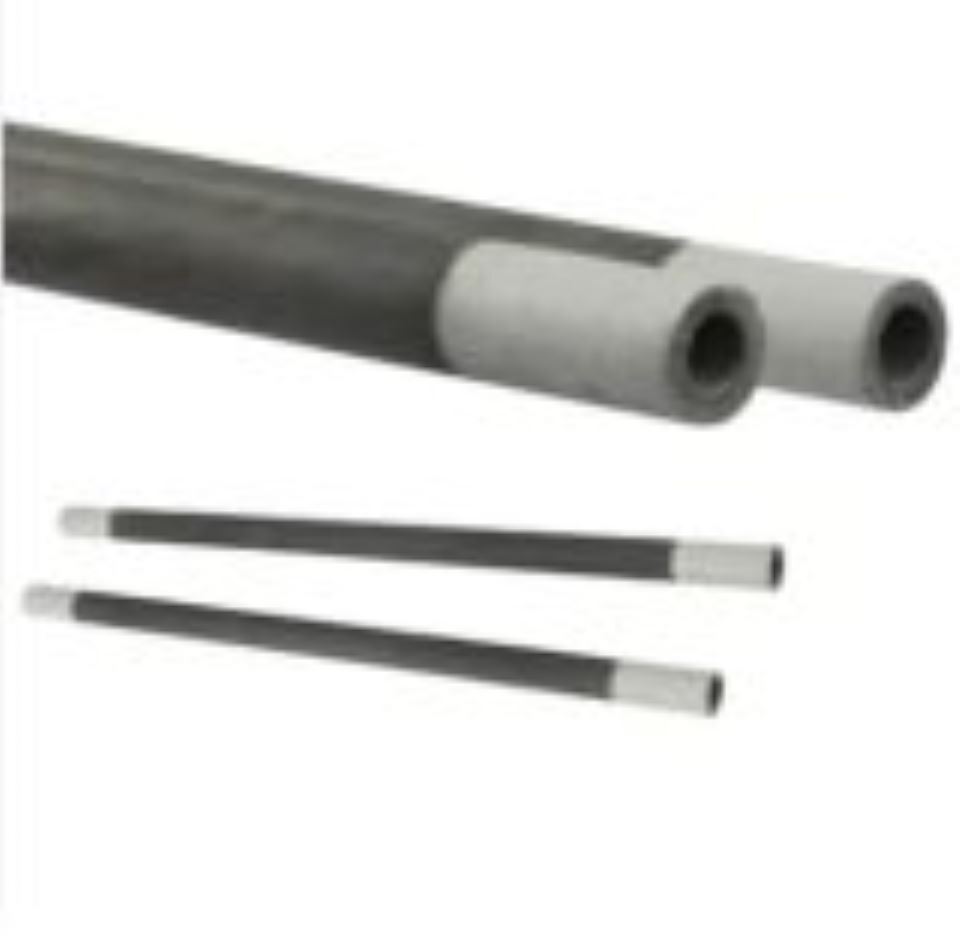

5.GC ( Dumb bell type )and GD (Rod)Type SIC heater
GCand GD type SIC heater is made from high-density,high-purity silicon carbide ,which is the most popular type ofeconomical heating element capable of operating under hot and rigorous environments.
